Advantages of electronic truck scale:

The electronic truck scale has three utility model patents.

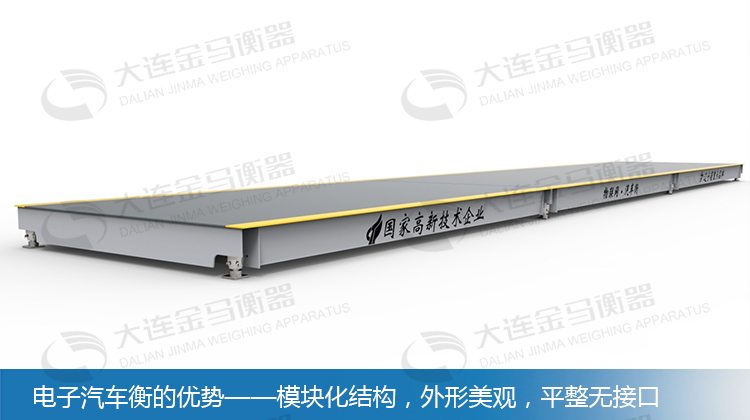

☆ Modular structure, beautiful appearance, flat without interface:

The self-developed electronic truck scale has obtained a national patent (Patent No.: ZL03284704.1). There is no traditional junction box or sensor mounting hole on the bearing platform, and there is no fixed screw on the table. The bearing platform is flat and beautiful, ensuring the overall sealing of the bearing platform, effectively protecting the sensor, preventing internal corrosion of the bearing platform, greatly improving the overall strength and stiffness, and extending the service life.

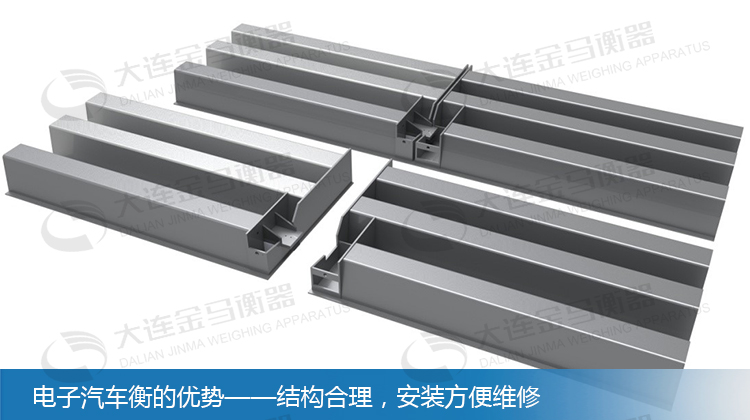

☆ Reasonable structure, easy installation and maintenance:

The unique overlapping structure of the weighing platform with independent intellectual property rights has completely changed the way that the weighing industry has used fixed bolts or pins to connect the weighing platform for many years. The installation, repair, and debugging of sensors are very convenient. During normal use, customers can basically achieve professional maintenance standards as long as they follow operating procedures and master simple adjustment methods, greatly improving the service life and accuracy of truck scales, Reduces the time and probability of use affected by maintenance.

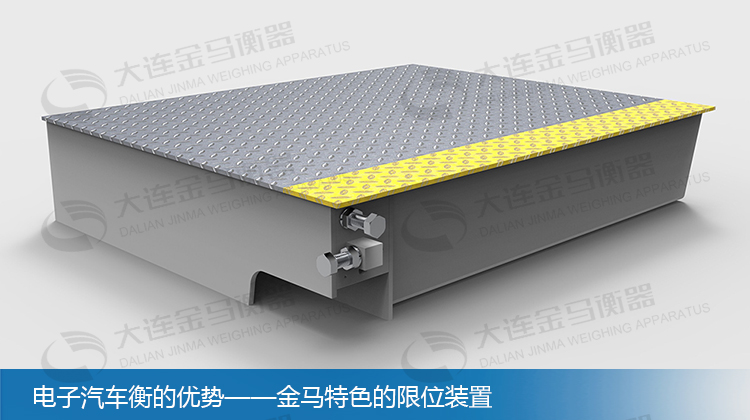

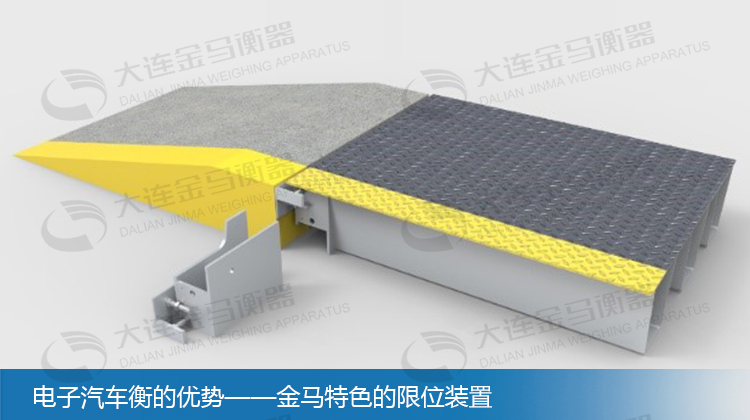

☆ Jinma characteristic limit device:

The patented limit device with proprietary intellectual property rights is intuitive, simple, accurate, and effective, making it particularly convenient for debugging. During the use process, customers have avoided the disadvantage that common faults in the weighing apparatus industry require maintenance and adjustment by professional personnel from the manufacturer. Weighers can master them through simple training, greatly improving work efficiency.

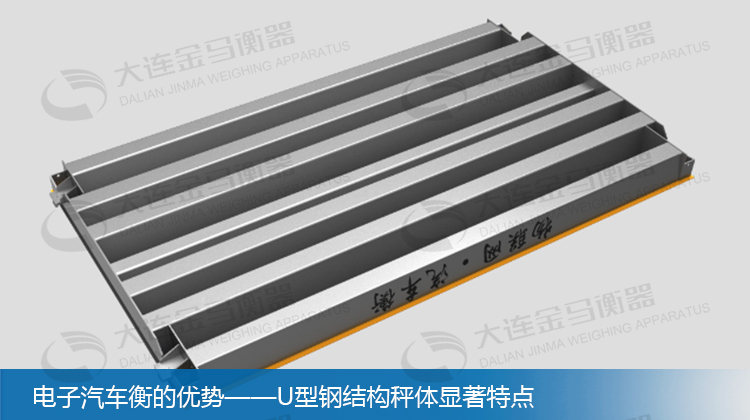

☆ Significant characteristics of U-shaped steel structure scale body:

The U-shaped section is not prone to deformation when subjected to lateral forces. Cold formed steel with U-shaped section is used for assembly and welding. The overall stiffness, strength, torsional resistance, and local stiffness of the table top are superior to those of other structural scales, with good processability and high anti-corrosion performance.

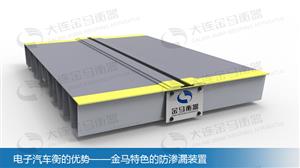

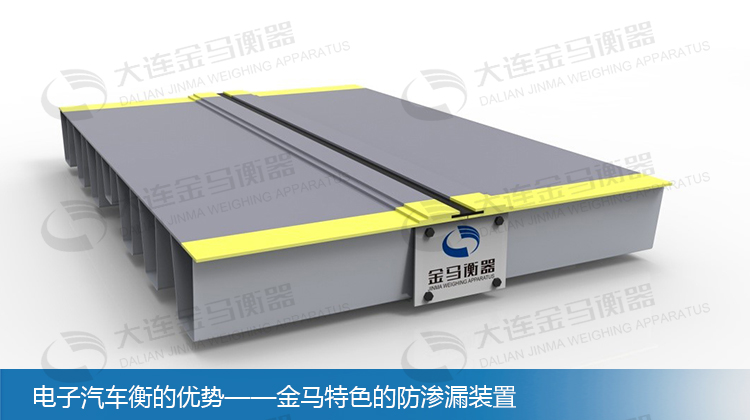

☆ Jinma featured leakage prevention device:

When a vehicle passes a truck scale, the tires carry debris such as coal dust. If the truck scale is not tightly sealed, debris leakage can damage the sensor and affect the measurement performance. Therefore, the performance requirements for electronic truck scales (weighbridges) are more stringent. The specially designed anti leakage function effectively prevents this phenomenon from occurring.

Main features:

1. There are no cover plate holes or other structures on the main scale platform, which is flat and beautiful.

2. The scale body will never deform, sag, collapse, or overturn during long-term use.

3. Due to the absence of any cover plate on the platform, debris such as coal dust, sand, mortar, and concrete cannot leak from the connection of the scale body to the location where the sensor is placed, ensuring the safe use and weighing accuracy of the key electronic components of the electronic weighbridge - the weighing sensor.
